Hot-Dip Galvanized Slotted Channels for Multi-Utility Support
In the context of the rapid development of construction and industry in the United Arab Emirates, solutions that provide strength, durability and versatility are of particular importance. One such solution is hot-dip galvanized slotted channels. They are a slotted C channel that has undergone a hot-dip galvanizing process. These structures have become a key element in the installation of cable runs, pipelines, ventilation shafts and air conditioning systems. Their high corrosion resistance and compliance with international standards make them a reliable choice for projects of any complexity.
Hot dip galvanized channels differ in that the zinc layer is applied by immersing the finished product in molten metal. Unlike pre-galvanized steel, where the protective layer is applied at the sheet stage, this process guarantees uniform coating after manufacture and reliable protection in aggressive conditions, including across coastal areas.
Design Features and Technical Parameters

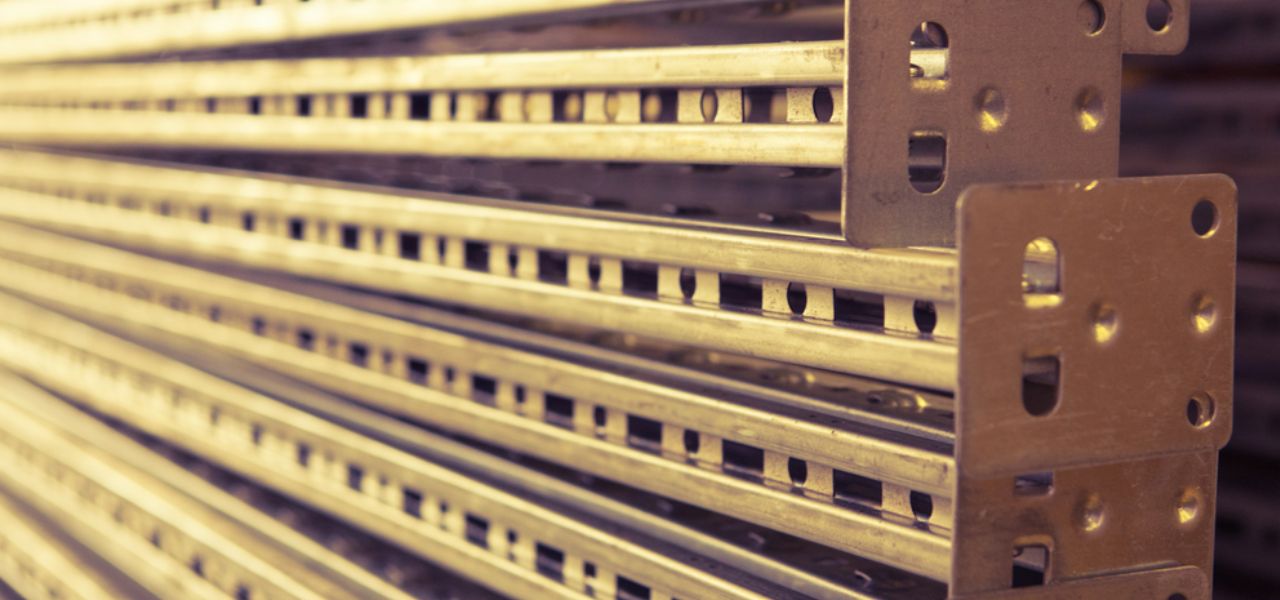

A slotted channel is a cold-rolled metal profile with continuous holes or slots. Due to this design, the installation of cable trays, pipes, air conditioning units and heavy equipment is carried out without welding or drilling. The profile sizes of the most popular series include 41 x 21 mm and 41 x 41 mm, with a wall thickness from 1.5 mm to 3 mm. The standard length is 3 meters, but versions up to 6 meters are available on request, which allows products to be adapted to large objects.
This modular flexibility allows for rapid integration with fittings, brackets, beam clamps, U-bolts, and cantilever arms. This significantly reduces the installation time and reduces the number of necessary tools.
Application in Construction and Engineering Systems
Hot-dip galvanized slotted channels are widely used in electrical installation, mechanical engineering, and civil engineering projects. In energy systems, they are used to support cable runs, switchboards, and panels. In HVAC, it is used for fixing air ducts, ventilation shafts, split systems, and air handling units.
These profiles are of particular importance for the oil and gas industry. There they are used for fixing pipelines, equipment at offshore and onshore installations, as well as in corrosive environments where high resistance is required. In recent years, solutions for photovoltaic arrays and solar panels have been in demand, where channels form strong structures that withstand wind loads.
Advantages and Quality Standards
The main advantage of hot dip galvanized profiles is corrosion protection. The zinc layer applied according to the BSENISO 1461:1999 or ASTM A123M standard ensures durability even in conditions of sandstorms and high humidity. Additional tests, including a 400-hour salt mist test, confirm the reliability of the coatings.
Channels are tested for static and dynamic loads. This means that they are able to withstand both the constant weight of engineering systems and short-term overloads. Depending on the purpose, it is possible to choose not only hot dip galvanized versions, but also powder-coated profiles painted in RAL colors for architectural tasks, or stainless steel channels for facilities with special sanitary requirements.
In addition, fire safety solutions are provided. The proven fire resistance classes E30, E60 and E90 make such profiles suitable for facilities where certified protection is required.
Variety of Accessories and Modular Compatibility
A slotted channel is an entire ecosystem of accessories. Channel nuts, spring nuts, flat brackets, T-connectors, base plates and end caps allow you to build complex support structures. Cantilever arms and wall mount brackets are used for suspension of heavy equipment.
Such a variety of details makes possible the construction of temporary scaffolding, the installation of raised flooring systems, the fastening of facades and curtain walls.
All in all, hot-dip galvanized slotted channels provide durable, modular support for cables, pipes, HVAC, and heavy equipment, performing reliably in the UAE’s harsh coastal and industrial environments.
With proven corrosion and fire resistance, standard-compliant coatings, and a complete accessory ecosystem, they enable fast, weld-free installations that meet demanding engineering and safety requirements.
